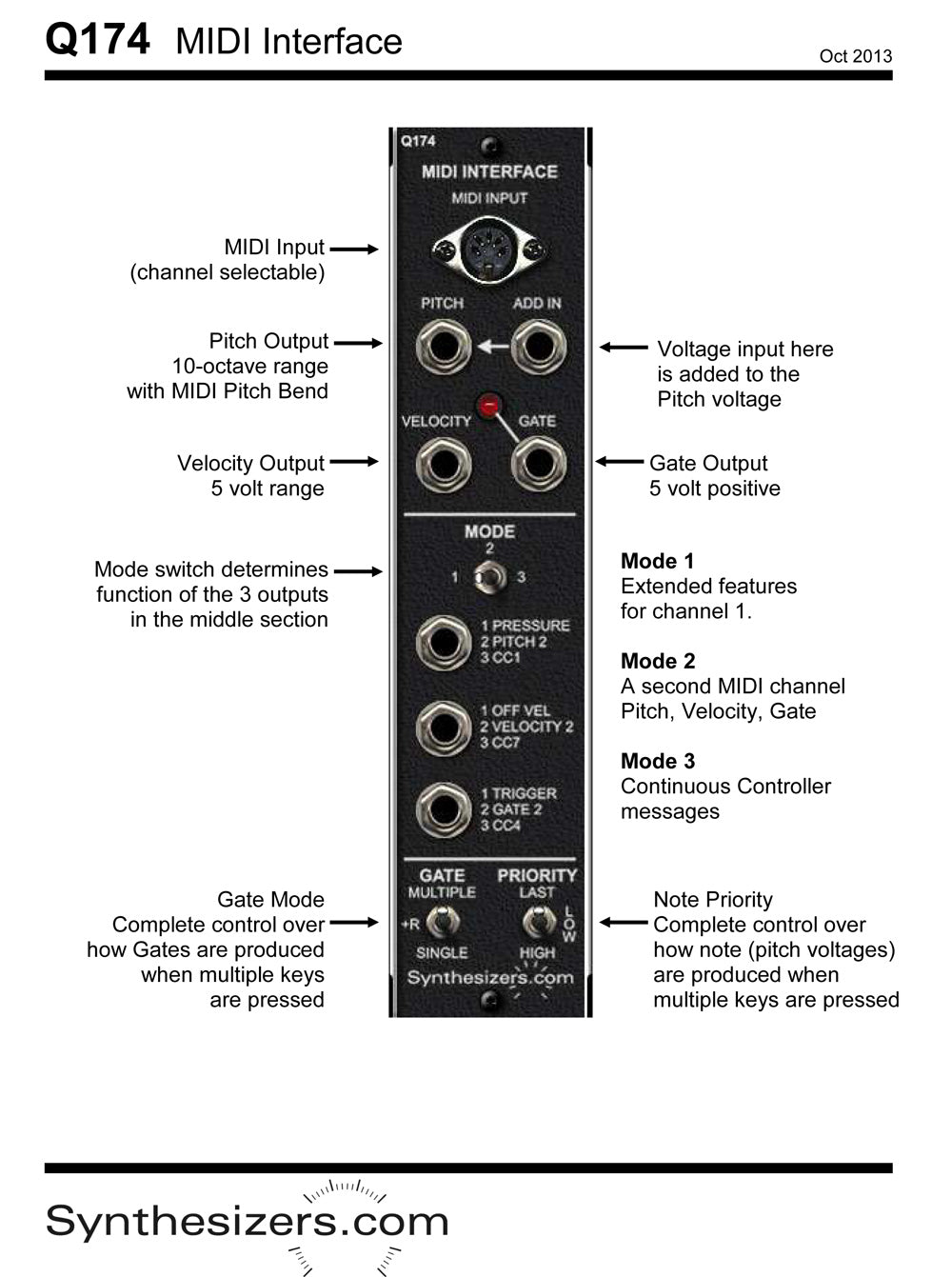

The Q174 MIDI Interface module accepts MIDI data from a keyboard, computer or other device and produces Pitch, Gate and other signals needed to control the synthesizer. Three modes of operation offer a variety of outputs for one or two MIDI channels.
Outputs include standard 1V/Octave Pitch outputs with 10-octave ranges, 5V Gates, Trigger pulse, On and Off Velocity, Channel Pressure and several Continuous Controller outputs.
Complete control over Note Priority and Gate modes provide virtually any type of
keyboard response emulating virtually all vintage and modern keyboards along with some that are unique.

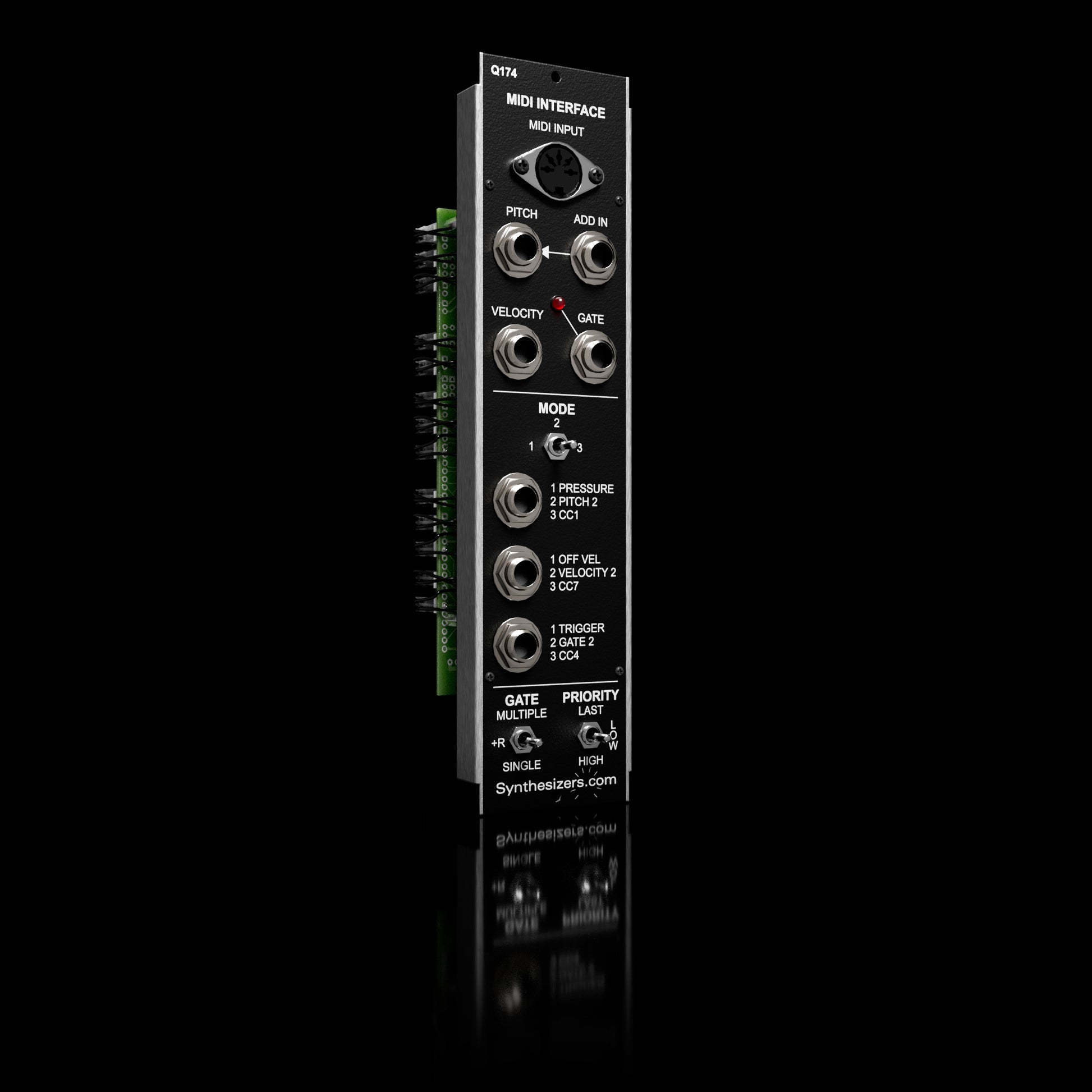

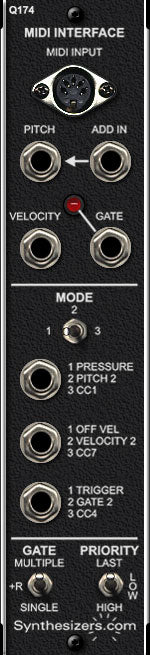

Q174 MIDI Interface
