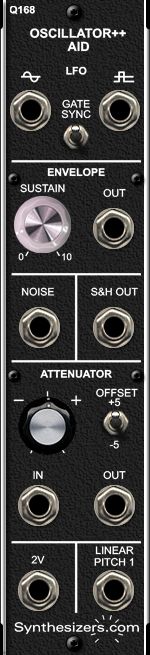

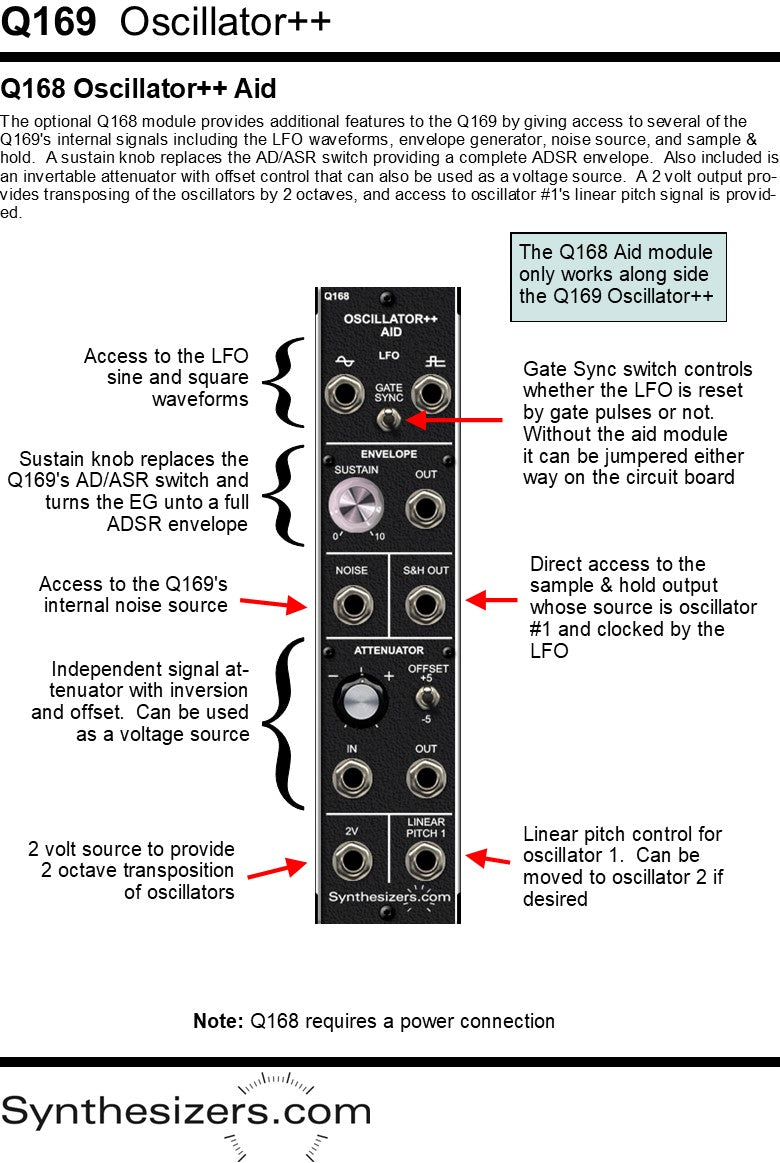

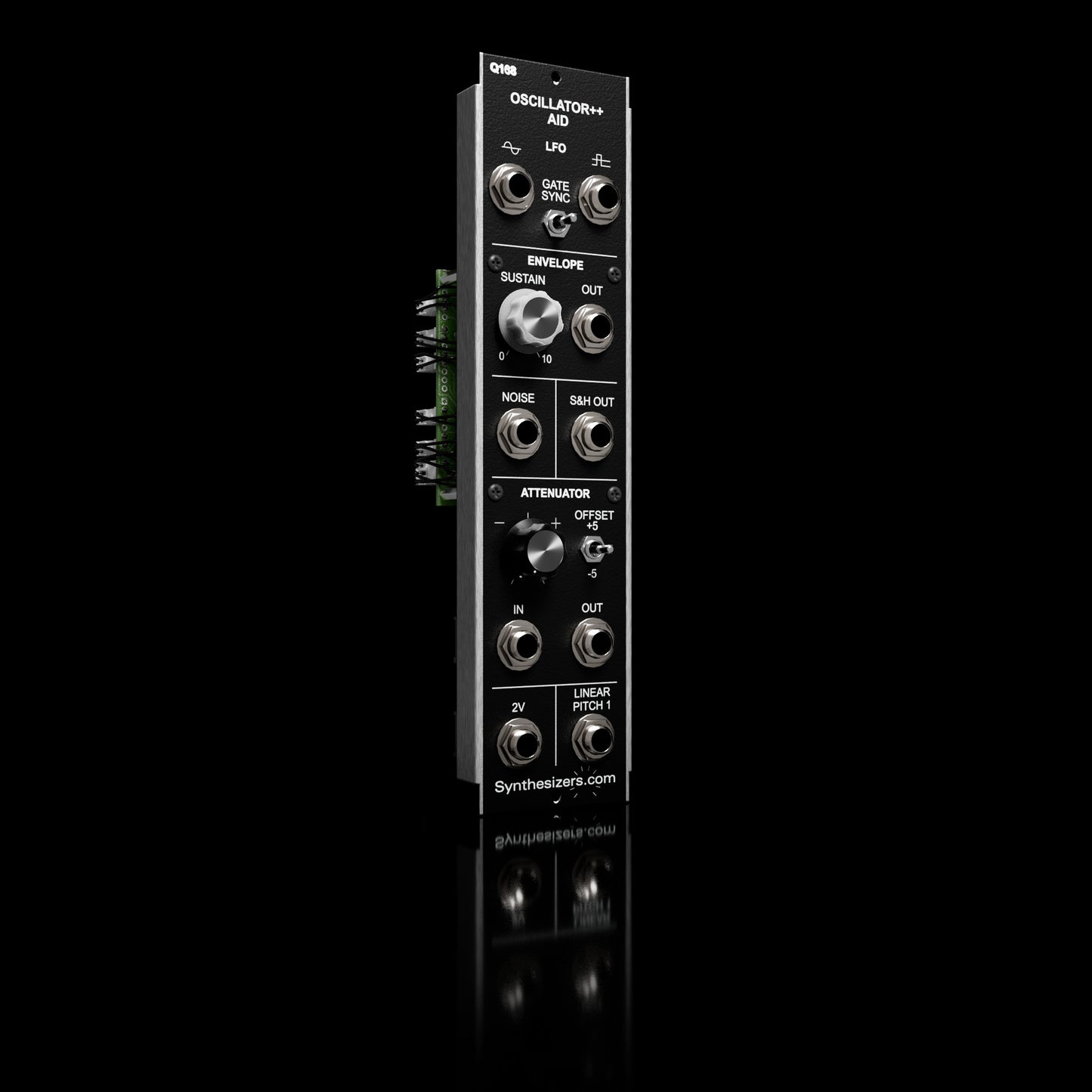

Q168 is an Aid module for use with the Q169 Oscillator++ module. Q168 pro-vides access points to various signals hidden inside the Q169 along with adding features useful for more elaborate patches.
Access to the LFO Sine and Square waves is provided along with a Gate Sync switch that causes the LFO to reset with each Gate input to the Q169.
Access to the internal envelope generator's output is provided and a Sustain knob replaces the AD/ASR switch on the Q169.
Direct access to the Noise signal and the Sample and Hold circuit is provided.
An independent attenuator circuit provides attenuation, inversion and voltage offsets. This is useful for converting bipolar audio signals into unipolar CV sig-nals and vice-versa. This section can also be used as a voltage source.
A 2 volt output allows precision transposing of the Q169 VCOs +2 octaves, or -2 octaves when patched through the attenuator section.
Access to VCO #1's linear pitch voltage input is also provided.
