The Q105 Slew Limiter is used to limit the change in a signal.
This function is sometimes referred to as 'Glide', 'Glissando', 'Lag Processing', or 'Portamento'.

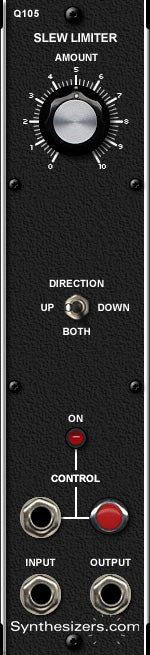

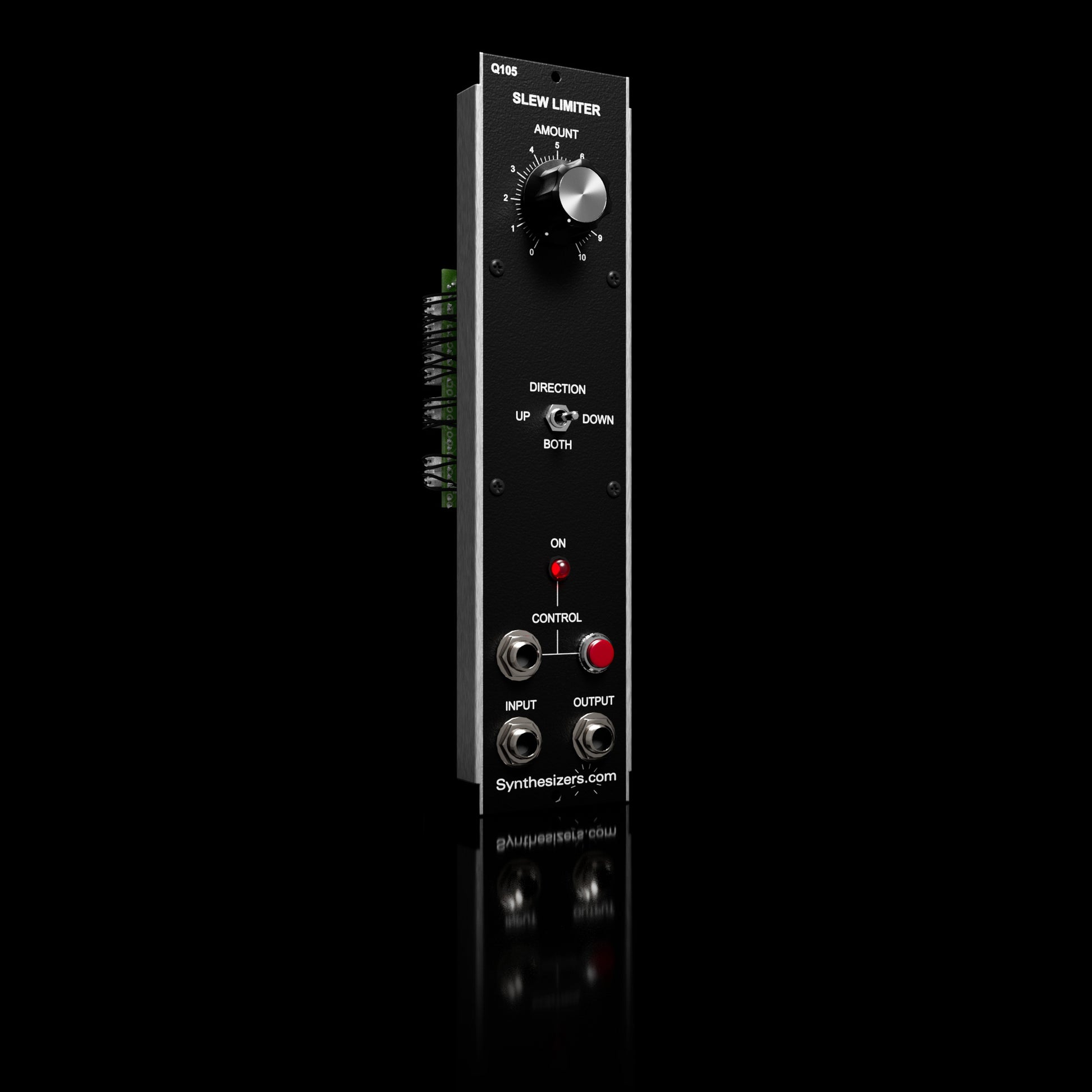

The amount of limitation is set by a front panel control.
Use the Slew Limiter as a portamento control by routing the keyboard's pitch control voltage through the Limiter then to an oscillator.
Use the Slew Limiter as an 'AR' (Attack, Release) envelope generator by patching in a square wave from the keyboard gate, oscillator or sequencer to control an amplifier or filter.
A switch selects which edge is limited - rising, falling or both.
A manual push button allows the operator to disable the module's function and a jack provides a way to enable/disable using an external signal or a foot switch (useful for portamento control).
An LED indicator shows enabled/disabled status.

Datasheets

Q105 Slew Limiter (PDF)

Specifications

Panel Size: Single width 2.125"w x 8.75"h.

Slew/Glide Time: 10ms to 5 seconds per octave.

Input/Output Voltage Levels: 10V PP

Power: +15V@15ma, -15V@15ma, +5V@10ma.
